ACV Lautsprecher Mitteltöner DLS Scandinavia 75mm/200W RMS Rabatt

Scandinavia 75mm Polypropylene Mid 50- 200 Watts
Scandinavia 75

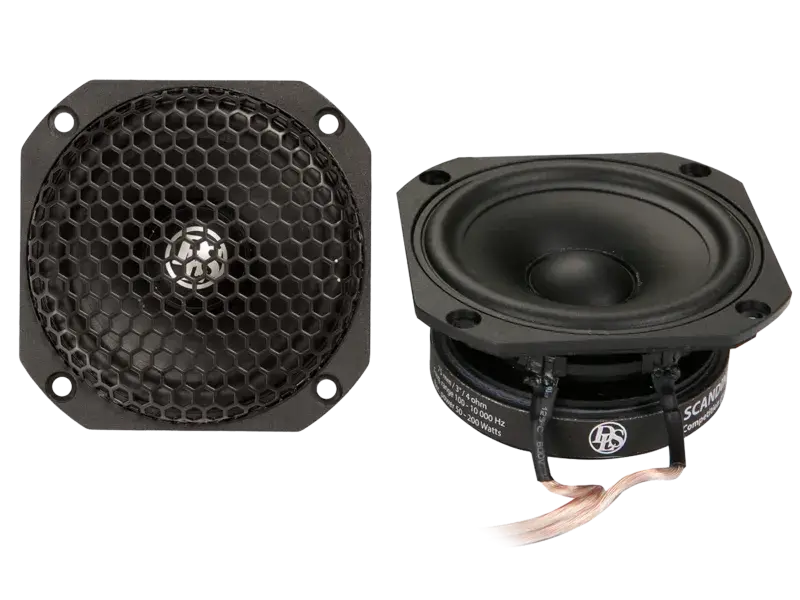

DLS Scandinavia 75 is a midrange specially designed for competition use. The extreme audio performance makes it a winner in every Pro installation.
FEATURES AND BENEFITS:
Extreme audio performance, transparent and clear sound
Great imaging and staging capabilities
High resolution and dynamics, rich of micro details
Extremely wide frequency range
Install in sealed box of minimum 1 litres and maximum 4 litres.
Rec.HP X-over frequency: above 180 Hz HP and LP below 6000 Hz
Specifications
Description / type 3″ midrange speaker with PP cone
Impedance 4 ohm
Recommended amplifier 50 – 200 Watt
Frequency range 100 Hz – 10 kHz (in axis) +- 3 dB
Fs – Resonant frequency 100 Hz
Sensitivity 85,2 dB
Outer diameter 84 x 84 mm / 3,31″ x 3,31″
Mounting hole 76 mm / 3″
T/S parameters
single V/C
Fs 100 Hz Re 3,5 Ohm Qms 4,95
Vas 1,59 liter Vas 0,056 Cuft Qes 0,76
Qts 0,66 Sd cm² BL 3,06
Mounting depth 38 mm / 1,5″
EAN Bar code 7331644824602
